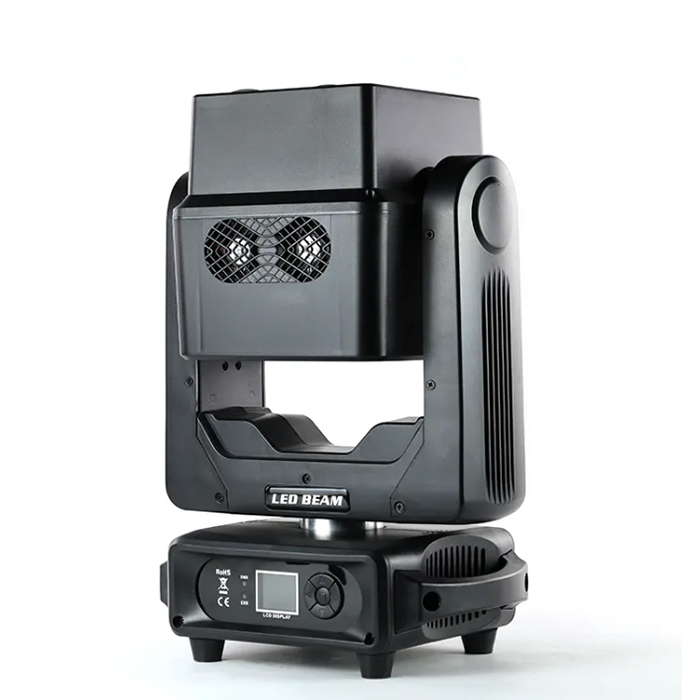

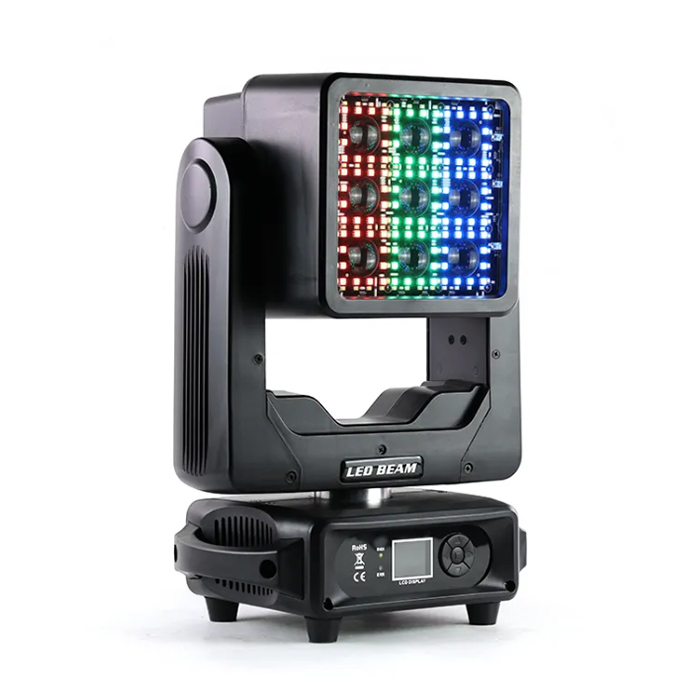

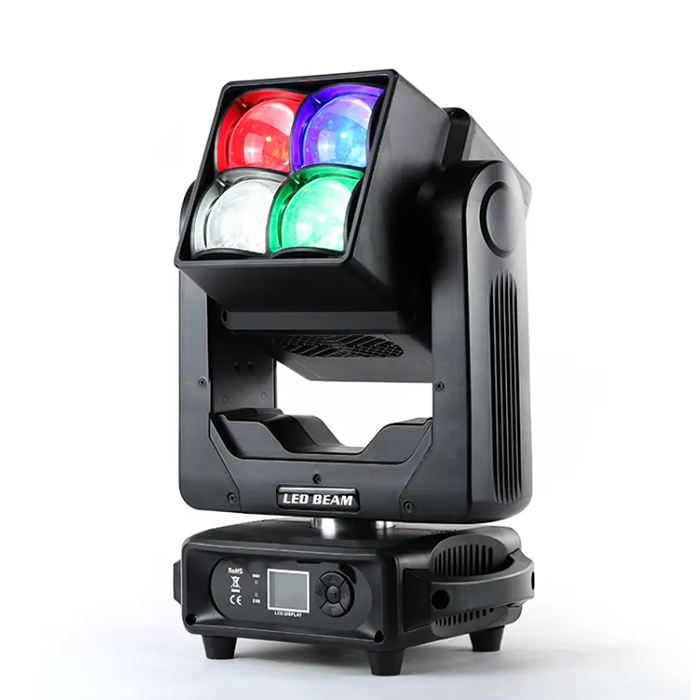

a rugged,multi-effect moving head fixture in a small form factor that provides you withunlimited effects, powerful beams and strobe effects with its dual head design.The front of the luminaire's head has four 60-Watt RGBW LEDs for beams anduniform washes via the fixture's 2.5° to 28° zoom range. The rear of the fixture's head features 963-Watt cool white LEDs, 108 0.5-Watt RGB LEDs, and 9 10-Watt cool white LEDs.The rear of the head has a 100° field angle in pixel strobe section and a tight 3.5° angle for well-defined , mid-airbeams.it also has infinite pan and tilt operation making it like no otherfixture on the market.
Input VoltageRange: 100-240Vac; 50/60Hz
PowerConsumption: 600W
Beam/WashSection: 4 x 60W RGBW LEDs
Pixel/StrobeSection: 96 x 3W CW LEDs (divided into 24 controllable zones)
Pixel/Strobesection: 108 x 0.5W RGB LEDs (divided into 9 controllable zones)
10WBeam Section: 9 x 10W CW LEDs
Beam/WashSection: 2.5°-28°
PixelSection: 115°
StrobeSection: 108°
10W BeamSection: 3.5°
DMX ProtocolModes: 4
ControlChannels: 21+/24/39/97
FirmwareUpgrade: Upgrade via DMX link
Pan Movement: Infinite
Tilt Movement: Infinite
AutomaticPan/Tilt position correction
Resolution:16 bit
Outstandingstrobe effect with variable speed
Smoothdimming 0-100% (4 user selectable dimming curves)
Motorizedzoom
Individualpixel control and built-in color macro effects
Wash andstrobe functions
Power In/Out:Power connector in/out
Data In/Out:3-pin or 5-pin XLR
Width: 237 mm(9.3")
Depth: 176 mm(6.9")
Height: 383mm (15.1")
Weight: 13kg
