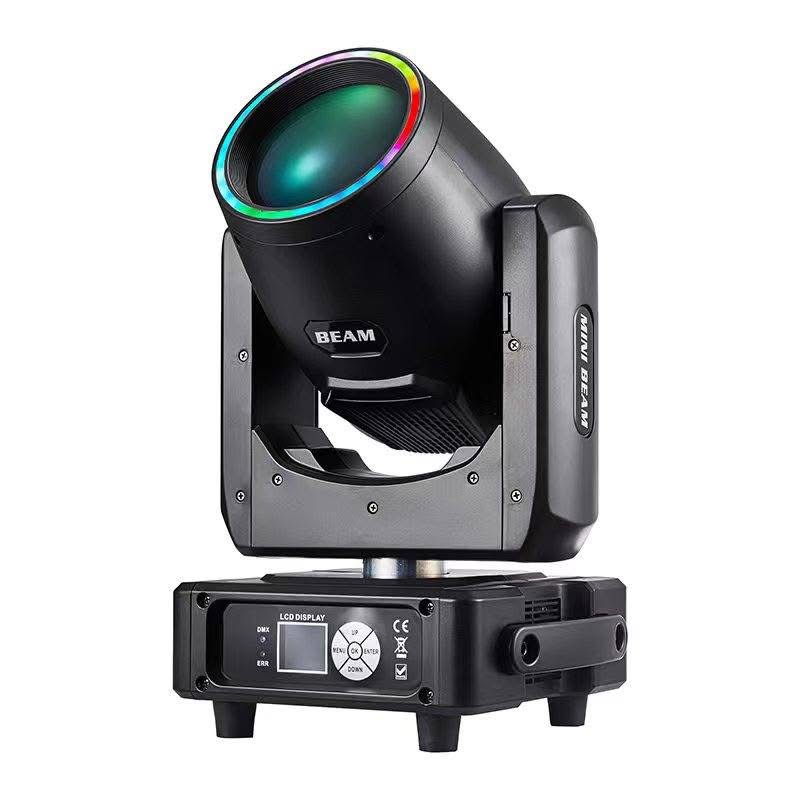

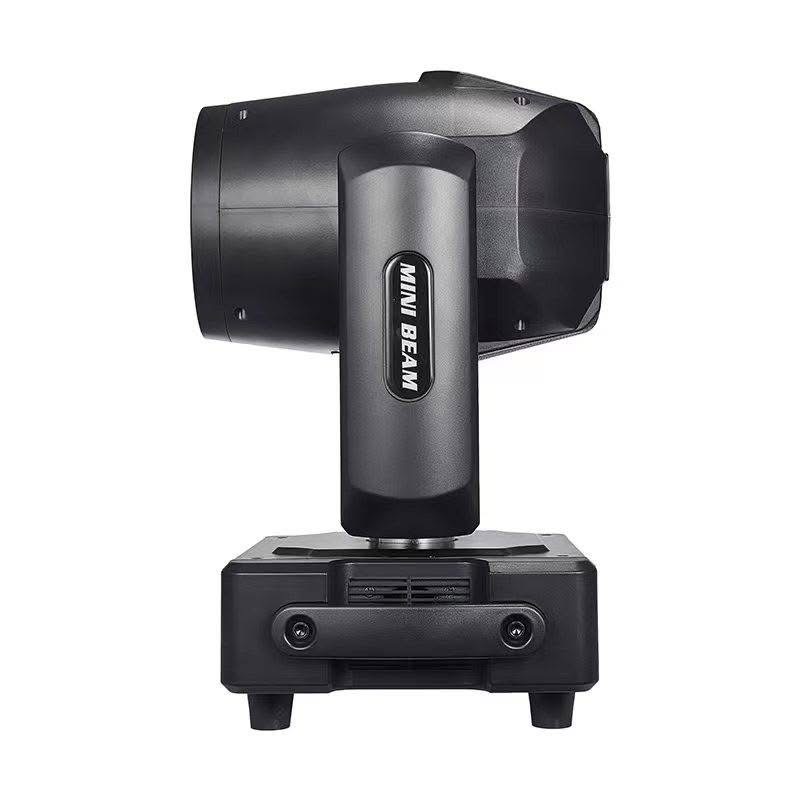

CP-B230moving head has a very bright output due to the use of the 7R 230W highintensity discharge bulb. The moving head is equipped with a color, frost, goboand prism effect wheel for ultimate control; the gobo wheel is provided with 17different gobos + open and the color wheel with 14 colors + open. Together withthe motorized 8-facet rotating prism it can create a wide range of spectacularlight effects. Among its features are a mechanical shutter and adjustable speedstrobe, frost lens, rotation prism, motorized focus and mechanical dimmer.Simple operation and easy to adjust via the touch screen display.

IP Rated:            IP20

Input Voltage:     AC100-240V,50\60Hz

Light Source:(included):   YODN MSD 7R 230W 8000K discharge lamp (1,000 hrs)

*LAMP Lifemay vary depending on several factors including but not limited to:

EnvironmentalConditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, andDimming.


DMX Channels:    16\20

DMX Connectors:       3-pin XLR or 5pin

Pan Range:   180°, 360°, 540°

Tilt Range:    90°, 180°, 270°

                  8/ 16 Bit Resolution Adjustable Movement

Colors:         14+ white, split colors, continuousscroll at variable speeds

Gobo wheels:      17 + open (all aluminum), fixed,continuous scroll at variable speeds

Strobe Rate:0 to 10 Hz

EFFECTS:     Full 360° Bi-Directional Animation Wheel

Rotating Prisms and Prism Macros

Motorized Focus and Auto-Focus

High Speed Mechanical Shutter and Strobe

PRISMS:       8 -facet prism with rotating function

Illuminance:CRI85 | >13,000 Lumens

80,000 LUX 10m (6.0° Beam)

Zoom Angle:(beam): Beam5°

Weight:   16 kg

Size:      330 x 400 x 460 mm

Approvals:    CE
